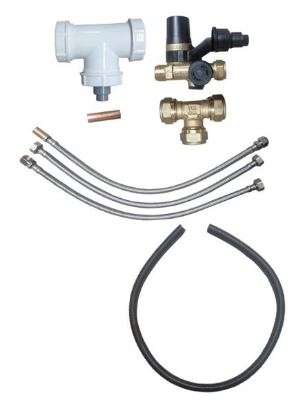

Contents
• high pressure water hose 0.5 m 10 clamp - 1/2” union nut*
• high pressure water hose 0.5 m 10 clamp - Ø15 pipe
• high pressure water hose 0.5 m Ø15 pipe - 1/2” union nut*
• copper pipe Ø15 long 50 mm
• inlet combination DN15, 15 compression fitting, pressure: 6 bar 1/2 male thread
• brass T-piece 3 x 15 compression fitting
• flexible plastic hose
• reducer to funnel
• tie wrap
• plastic T-piece, 40 x 40 x 40 mm including adapter *
2 fiber rings included for 1/2” flat couplings

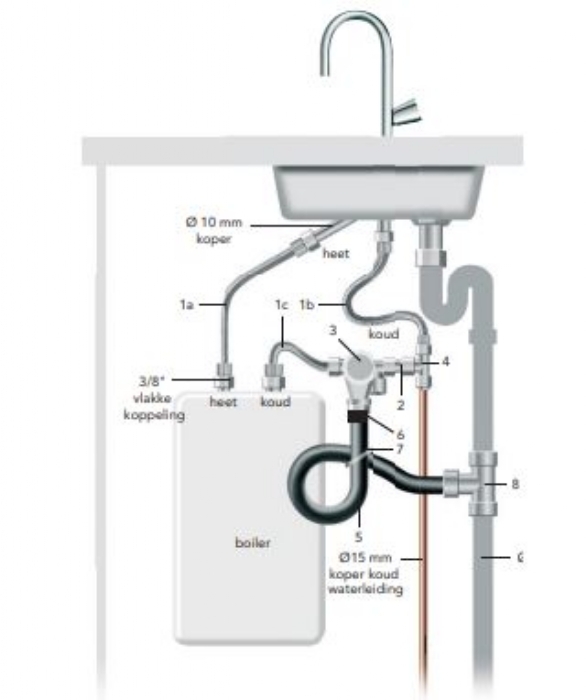

The following common situation is assumed:
• a 15 mm cold water pipe up to the clamp connection of the inlet combination
• a sink drain pipe (Ø40 mm PVC) in the immediate vicinity of the water heater
• boiler connections with 1/2” male thread
