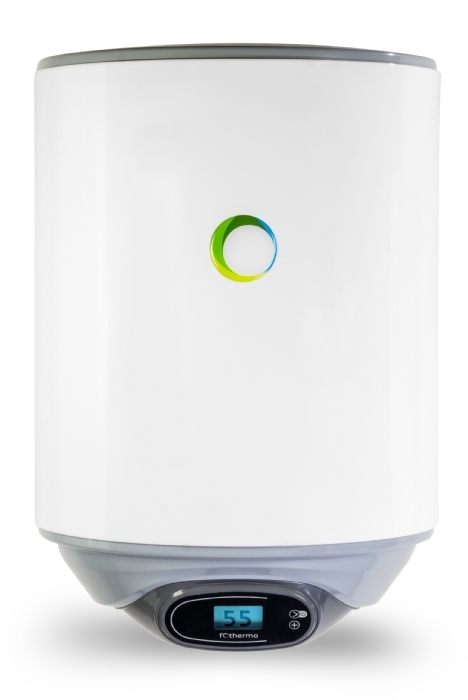

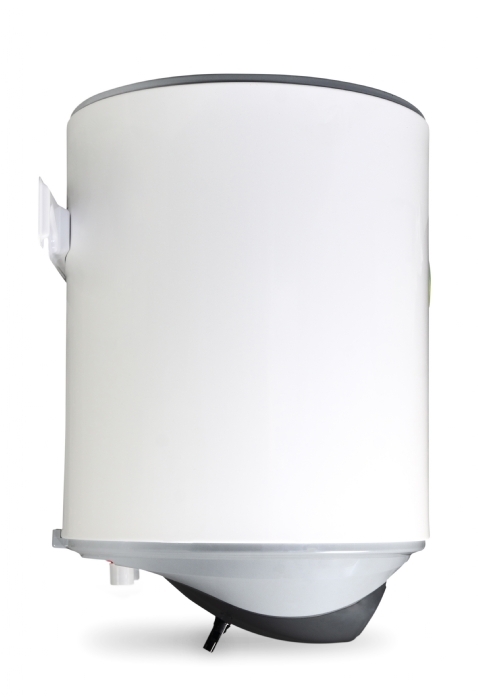

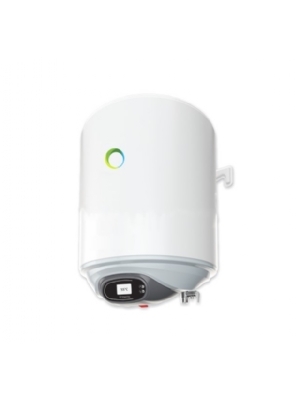

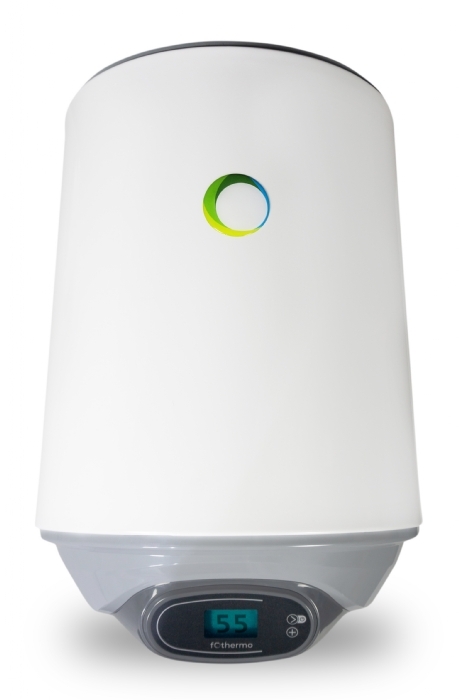

The Fothermo PV water heater 30 Liter is an electric water heater (A+) that can be connected directly to your solar panels.
This model is ideal to be placed in your home, camper, caravan, chalet, tiny house, etc.

The ideal off-grid water heater that can be heated 100% by your solar panels.

(The solar panels are not included and are therefore not included.)

Optional power supply

You want to be able to use your water heater even without sunlight, for which we have an optional power supply.

See the options below:

62W - 140W - 240W

You can order these separately on our site.

Heating time water heater with direct connection to solar panel:

Characteristics:

• 30 liter photovoltaic water heater
• Hot water up to 65 ° C
• No connection to the electricity grid required
• Integrated solar controller with MPPT charging technology = up to 30% additional yield
• Direct connection MC4 for solar panels from 100 to 1000 watts
• Digital temperature and energy saving display
• High manufacturing quality: insulated and enamelled tank
• Safe operation with low voltage below 50 volts
• Inlet combination is included in the delivery

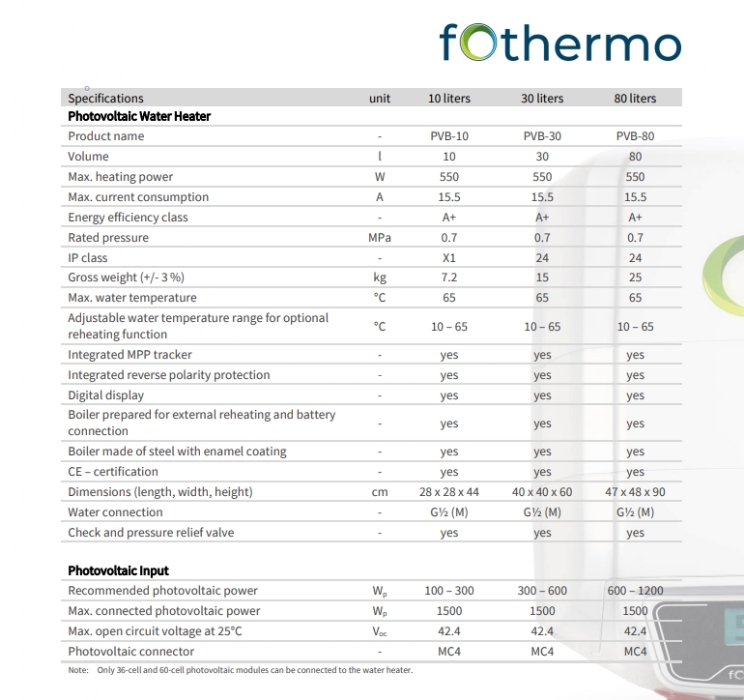

Specifications:

Type: PVB-30

Display: Digital

Capacity: 30 liter

Anode : Yes

Power supply: Optional

Dimensions: 387 x 410 x 560 mm. ( w x d x h )

Mounting method: Vertical

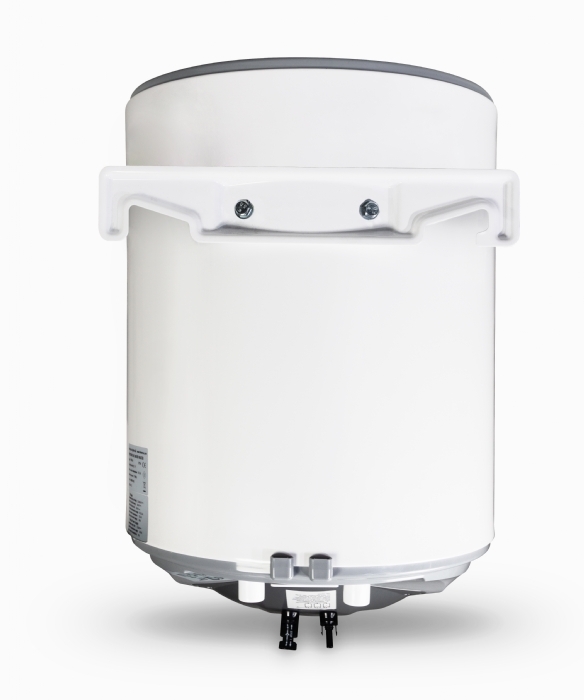

Mounting bracket is attached to the water heater (mounting material not included)

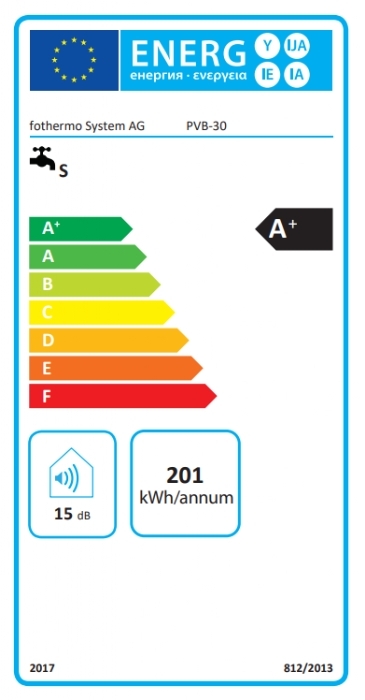

Energy class: (A+)

Power consumption: 201 kWh per year

Max. pressure: 8 Bar

Wattage: 550 watt

Water connection: ½ " inch

Weight: 15 Kg.

Included in delivery:

• Water heater
• Drilling template (printed on the packaging) for easy installation
• 3-way safety valve, also called inlet combination : this is a drain valve, non-return valve and pressure relief valve in one
• Instruction manual

Wall anchors are not included.
