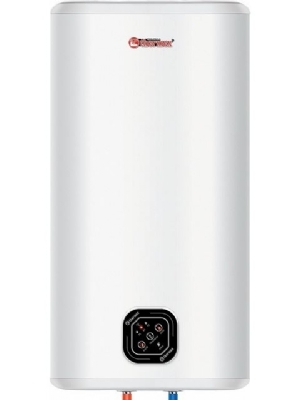

Thermex IF 30 Flat Smart

30 liter flat smart water heater with smart technology. Can be used vertically or horizontally


The Thermex IF 30 SMART boiler combines advanced features, energy efficiency, and flexible installation options. Here are the specifications and features of this boiler:

Design and Installation

  • Installation: Suitable for both vertical and horizontal mounting, offering flexibility for integration in various locations.
  • Design: The flat design allows the boiler to integrate perfectly in any conceivable space.

Energy Efficiency

  • Energy Label: B, thanks to excellent insulation and the smart "SMART" mode that maximizes energy savings by maintaining water at a minimum temperature when hot water is not needed.
  • SMART Function: Monitors hot water usage and prepares for the next cycle of water usage, providing comfort while saving energy.

Ease of Use and Safety

  • Display: Equipped with a user-friendly display with self-diagnosis and frost protection for added convenience and safety.
  • Power Loss Safety: Automatically switches to standby mode during power outages and requires manual reactivation after power is restored.

Construction and Materials

  • Tanks: Enameled steel tanks with BIO-glasslined coating provide maximum protection to the inner tank without environmental impact.
  • Safety Features: Includes a 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one) for optimal safety.

Technical Specifications

  • Brand: Thermex
  • Type: IF 30 SMART
  • Net Capacity: 25 liters
  • Installation: Vertical mounting (dimensions: 587 x 453 x 263 mm) and horizontal mounting (dimensions: 453 x 587 x 263 mm), with downward and leftward branch connections respectively.
  • Water Pressure: Minimum 0.05 MPa, Maximum 0.7 MPa
  • Operating Pressure: Maximum 0.8 MPa
  • Power Rating: 2000 Watts, 230 Volts, 10 Amps
  • Water Connection: ½“ inch
  • Empty Weight: 13.5 kg
  • Heating Time at Incoming Temperature of 45 degrees: 39 minutes
  • Maximum Temperature: 65 degrees Celsius
  • Warranty: 2 years full warranty, 5 years on the tanks

Included in the Package

  • Boiler including connection cable
  • Manual
  • Set of wall anchors
  • Inlet combination: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one)

The Thermex IF 30 SMART boiler offers a compact solution with advanced features and high-quality materials, ideal for various household applications where efficiency and ease of use are important.

Brand: Thermex
Energy class: Product sheet
This item is no longer available, contact us for possible alternatives.
