TTulpe Smart Master 50 - flat electric storage water heater with smart control

High-quality 50 liter flat smart boiler. Can be applied vertically and horizontally

The Smart Master series has a flat design through the use of two tanks. This 50-liter water heater can be mounted to the wall both horizontally and vertically.

The Smart Master boilers are of exceptional quality and particularly suitable for areas with hard water. In addition to the tanks, the heating elements are also enamelled.
Thanks to good insulation and the new SMART function, this water heater has excellent energy efficiency that results in an energy label B. The Smart Master 50 has a net capacity of 47 litres.
Using the smart "SMART" mode, the water heater monitors the use of hot water. In this way the boiler prepares for the next cycle of water use. (7 days in a cycle). At times when you do not need hot water, the water is kept at a minimum temperature. This way you can save considerable energy with maximum comfort!
Moreover, the boiler is easy to operate thanks to the user-friendly display and the handy rotary knob. In addition to smart mode, you can also set the boiler manually. For example, you can heat the boiler with one heating element (eco mode) or with two heating elements.
It is quite possible to operate the TTulpe Smart Master with a time switch. The boiler remembers its last setting after a power failure.
The tanks are produced in an environmentally friendly way. A special ceramic coating of both the tanks and the heating elements ensures a very long service life. Double extra-large anodes protect the boiler against corrosion.

- Flat design for low installation depth.
-Net capacity of no less than 47 litres
-Suitable for hard water
-Smart control for comfort and energy saving.

Included in the delivery:
* Boiler including connection cable and plug.
* 3-way safety valve (this is a drain valve, non-return valve and pressure relief valve in 1), also known as the inlet combination.
* Instruction manual
* 2 Wall anchors (wall hooks).

Technical data:
Brand: TTulpe
Type: Smart Master 50
Net capacity: 47 litres
Placement: vertical mounting, water connections down; horizontal mounting, water connections to the left.
Water pressure: minimum 0.1 MPa and maximum 0.75 MPa
Working pressure: maximum 0.75 MPa
Connection value: 2000 Watt 230 Volt 10 AMP.

Water connection: ½ " inch

Vertical dimensions: 860 x 470 x 250 mm (h x w x d)
Horizontal dimensions: 470 x 860 x 250 mm (h x w x d)
Distance water connections to the wall: 140 mm
Distance between water connections: 380 mm
Cable with plug (length 120 cm)
Empty weight: 28 kg.
Warm-up time of the incoming temperature with 45 degrees Celsius: 60 minutes.
Maximum temperature: 75 degrees Celsius.
Energy rating: B

Warranty: 2 years, 5 years on the tanks.

Brand: TTulpeŽ
Energy class: Product sheet
£ 215,- incl. VAT

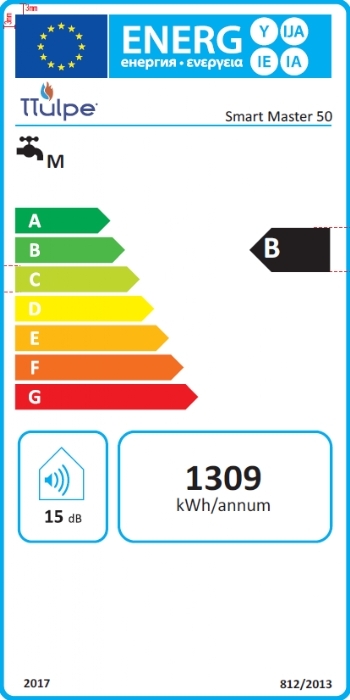

  • ErP label Smart Master 50

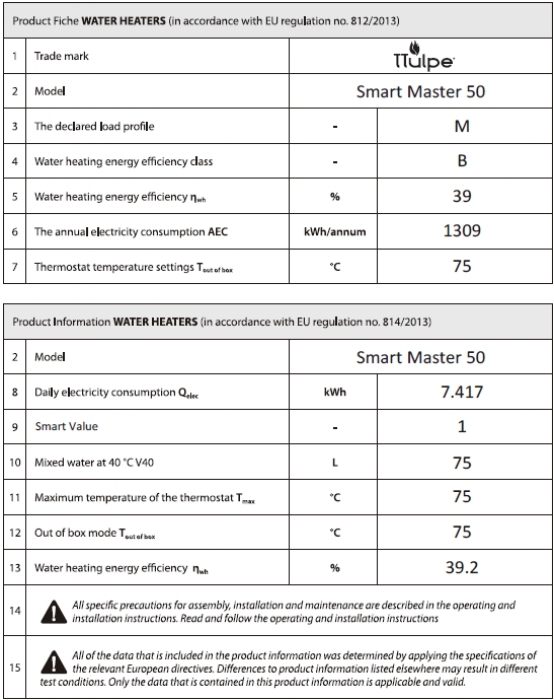

  • ErP Product fiche TTulpe Smart Master

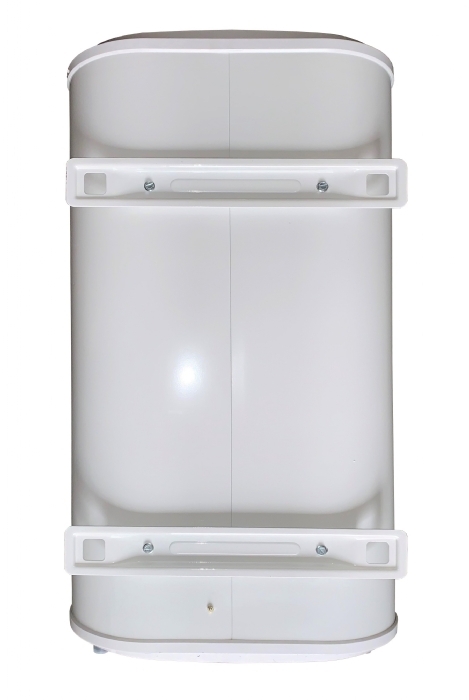

  • Smart Master 50 back

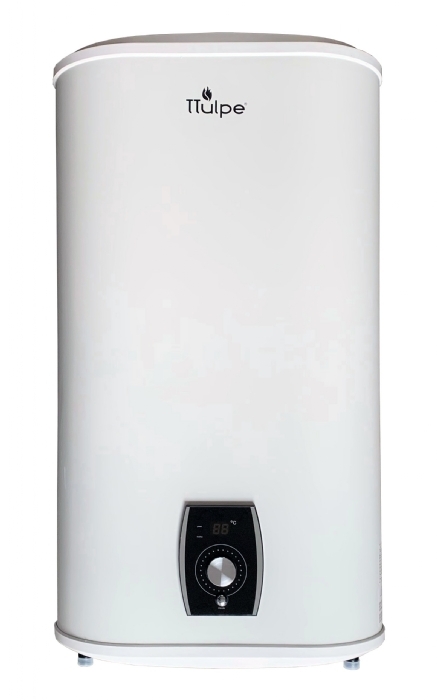

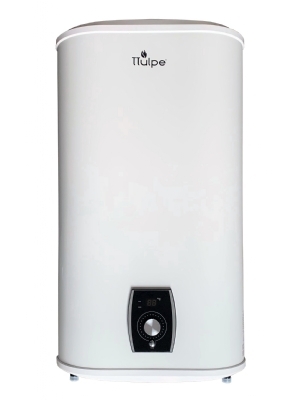

  • Smart Master 50 front

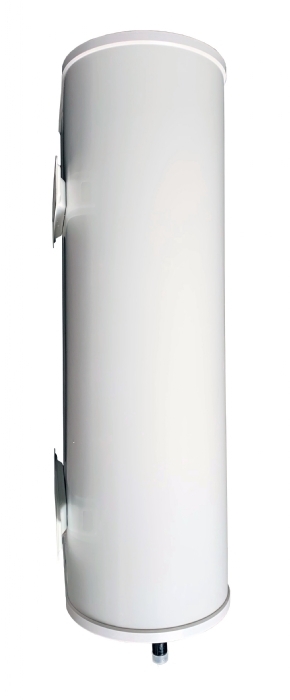

  • Smart Master 50 side

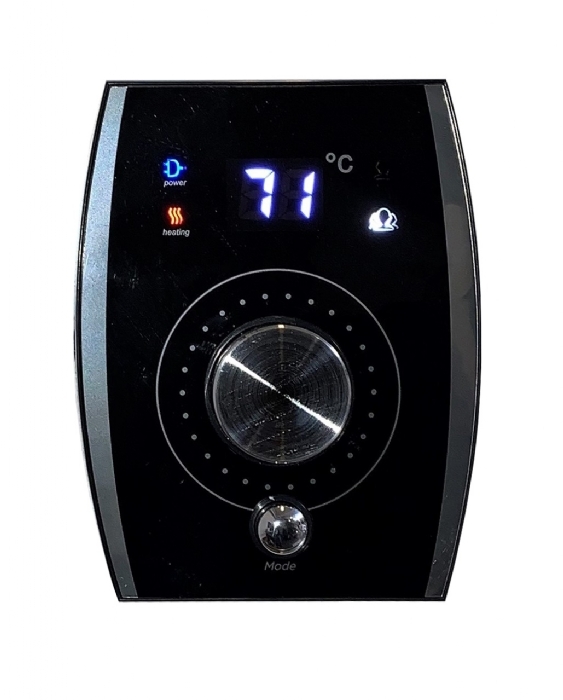

  • Smart Master Display
  • Smart Master 50 sfeer


  • TTulpe Smart Master 50 installation video
