Photovoltaic boiler with 1500 W reheating via the 230 V power network when there is insufficient sunlight.
Features
1500 W after-heater Powerful electric after-heater to be able to use sufficient hot water even on the darkest days.
Digital display on the boiler An LC display provides information about the system, such as: B. the water temperature and the incoming solar power!
Warranty 3 year manufacturer's warranty
Cost-saving hot water thanks to almost free photovoltaic electricity. High cost-effectiveness thanks to low initial investment costs and almost no operating costs!

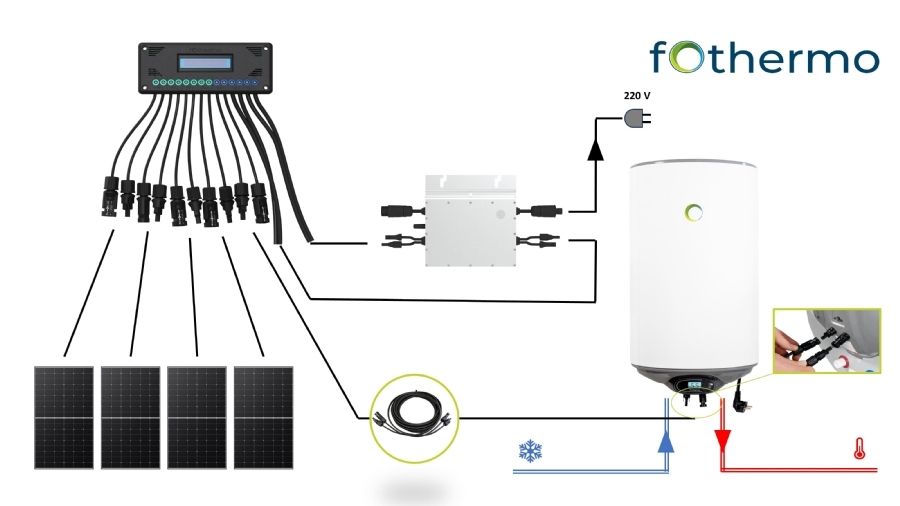

Plug and Play The photovoltaic modules are simply connected using MC4 plug connections. 70% energy savings A 2-person household can use an 80 liter photovoltaic boiler to obtain around 70% of the energy required for hot water preparation from the photovoltaic modules. The remaining energy is drawn from the grid, especially in the winter months.

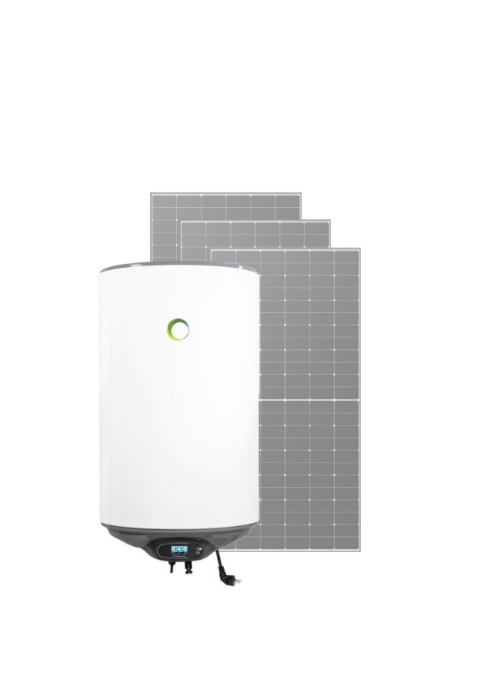

The photovoltaic hybrid boiler is the ideal solution for a cost-effective and sustainable hot water supply in your home. Hot water accounts for 20-40% of energy consumption in a household. fothermo boilers are the easiest way to use the sun's energy directly. Once installed, the boiler produces free hot water using the power of the sun. With its high performance, the photovoltaic boiler serves as a replacement for a classic electric boiler. Automatic reheating via the power grid in bad weather ensures sufficient hot water even on days without sunlight.

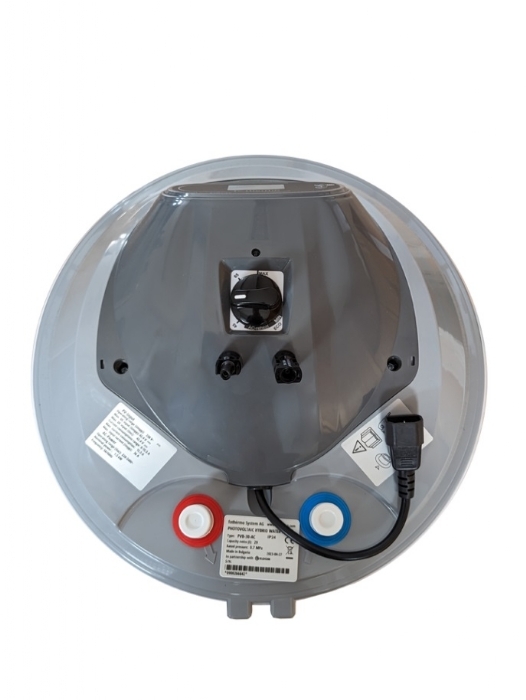

The boilers are available in sizes 30 l and 80 l. Installation is easy on a wall. An overpressure and check valve is also included. The water connection is made to two 1/2 inch connections with external threads. The solar connection is made via MC4 connector system.
With up to 550 W, the photovoltaic hybrid boiler heats the water using photovoltaic electricity. In order to have enough water available even on cloudy days, up to 2,000 Wp of photovoltaic power can be connected and/or the electric 230 V post-heating can be used.
Data:
Type: PVB-80-AC
Volume: 77 liters
Nominal pressure: 0.7MPa
IP class: 24
Weight: 25 KG
Dimensions (length, width, height): 47 x 48 x 90 cm
Water connection: G½ (M)
Max. photovoltaic heating output: 550 watts
Max. photovoltaic current consumption: 15.5 Amp
Max. water temperature: 65 degrees Celsius
Recommended photovoltaic power: 600 – 1200 Wp
Max. connectable photovoltaic power: 2000 Wp
Max. open circuit voltage: 42.4 Voc
Photovoltaic connector: MC4
Type of reheating: directly via a 230 V Schuko plug
Heating output: 1500 watts
Adjustable water temperature range: 10-65 degrees Celsius
