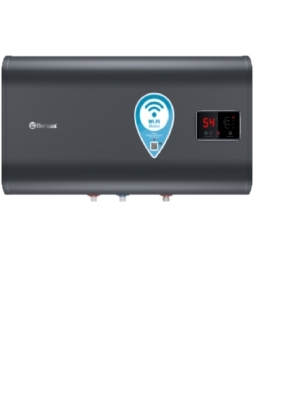

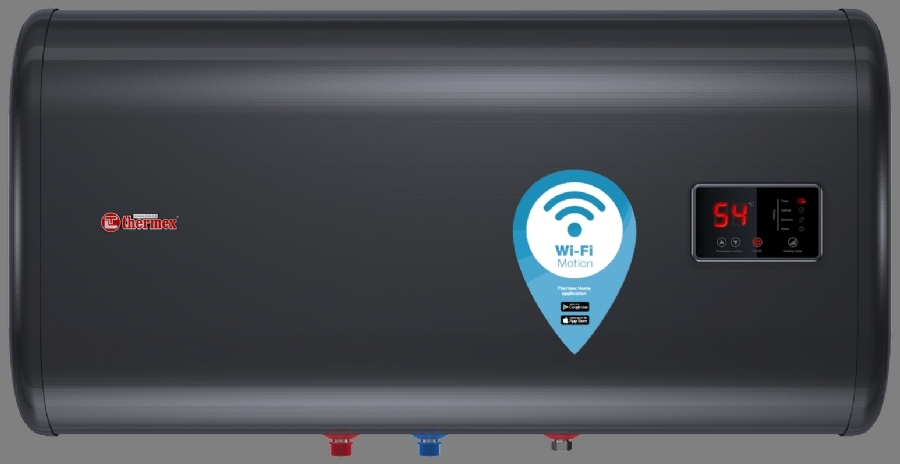

Thermex ID 80 H Shadow Smart WIFI horizontal flat water heater

Flat Smart boiler with wifi for horizontal assembly, 80 liters.

Discontinued model. Delivery subject to availability.

Alternative: TTulpe Shadow 80-H 80 litres flat boiler horizontal Wi-Fi

The Thermex ID Shadow Smart series can be perfectly integrated by the flat design in every conceivable place.

Through good insulation and the new Smart function, this boiler has excellent energy efficiency that results in an energy label C.

By using the smart "smart" mode, the boiler monitors the use of hot water. In this way the boiler is already preparing to the next water use cycle. (7 days in a cycle). At times when you do not need hot water, the water is kept at a minimum temperature. This way you can save energy with maximum comfort!

Moreover, the boiler is easy to operate by the user-friendly display. This is also equipped with a self-diagnosis and frost protection.

The tanks are produced according to the BIO-glasslined principle. These are enamelled steel tanks that, thanks to this unique and patented coating, offer the inner tank with the highest possible protection without burdening the environment.

If the power fails, the device remember its last settings.

The ID Shadow series is the luxury variant of the IF Comfort series and only available in black.

The Thermex ID 80 H Shadow Smart WiFi is easy to control via the handy app on your smartphone.

If you are away from home you can already operate the boiler. Ideal for holiday homes E.D.

Everything can be arranged using the free app!

In the app you can put the boiler on or off. Set the temperature and adjust the power.

You can also set a timer as extra functionality.

Download the app in your AppStore.

Included in the package:

* Boiler including connection cord

* 3-dour safety valve

* Manual

* 1 set of wall anchors

Technical data:

Brand: Thermex

Type: ID 80 H Shadow Smart Wifi

Bio-glasslined tanks, 2 anodes.

Net capacity: 68 liters

Placement: horizontal assembly, branch pipes down

Water pressure: at least 0.05 MPa and a maximum of 0.6 MPa

Work pressure: maximum 0.6 MPa

Connection value: 2000 watt 230 volts 10 amp.

Water connection: ½ " inch

Dimensions: 293 x 511 x 1018 mm (d x h x B)

Empty weight: 24 kg.

Warm-up time: 2 hours 10 minutes

Maximum temperature: 65 degrees.

Energy rating: C

Warranty: 2 years, 5 years on the tanks.

Content package: boiler, manual, wall anchors and an inlet combination: 3-fold safety valve (this is a drain valve, non-return valve and pressure relief valve in 1).

Brand: Thermex
Energy class: Product sheet
£ 370,-
£ 270,- incl. VAT

Sold out, you can still order this item, we will ship it asap when available.


  • Thermex ID 80 Smart H side
  • Thermex ID serie display 3


  • Installation example of a Thermex ID Shadow
