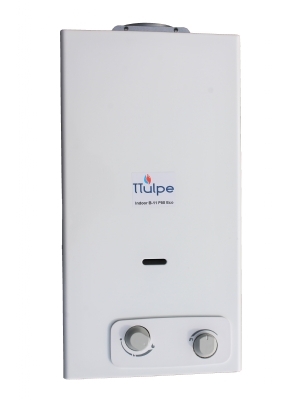

TTulpeŽ Indoor B-14 P37 Eco propane instantaneous gas water heater, ErP/ Low NOx

14 liters per minute propane gas water heater with battery ignition, 30-37 mbar

Description:

The new TTulpe® Indoor B-14 Eco is an open modulating propane gas water heater designed for indoor installation. With a capacity of 14 liters per minute, this heater provides efficient and reliable hot water supply for various applications.

Energy Efficiency and User-Friendliness:

The self-modulating valve adjusts the energy amount needed to heat the water, resulting in significant energy savings. Additionally, it features a gas-saving mode for reduced gas consumption during warmer months. The heater is well-suited for use with mixer taps or thermostatic faucets.

With a minimum water pressure of 0.2 bar, this water heater is suitable for situations with low water pressure, making it versatile in its applications.

Safety and Installation:

As an open type gas water heater, the Indoor B-14 requires an exhaust pipe to vent outside and adequate ventilation in the installation area. Various safety features ensure the heater shuts down if exhaust gases are not adequately vented. The unit features manual controls for gas and water flow, and the temperature can be adjusted with a dial.

Automatic Ignition:

The heater comes with an automatic ignition powered by a 1.5-volt battery. This ignition activates when water flows through the unit. The pilot light ignites the main burner when hot water is needed, and it automatically extinguishes if there's no hot water demand for 60 seconds.

Featuring ½ inch threaded connections for water and gas, installation of this water heater is straightforward. All necessary installation components are included with the unit.

Technical Specifications:

  • Gas Type: Propane
  • Gas Pressure: 30-37 mbar
  • Nominal Output Power: 24.3 kW
  • Battery Ignition: 1.5 Volt
  • Frost Protection: No
  • Dimensions: 363 x 650 x 247 mm (width x height x depth)
  • Minimum Water Pressure: 0.2 Bar
  • Maximum Water Pressure: 10 Bar
  • Water Flow Rate: between 2.5 and 13.6 liters per minute
  • Temperature Range: 35 to 65 degrees Celsius
  • Flue Gas Connection: 130 mm
  • Net Weight: 14 kg

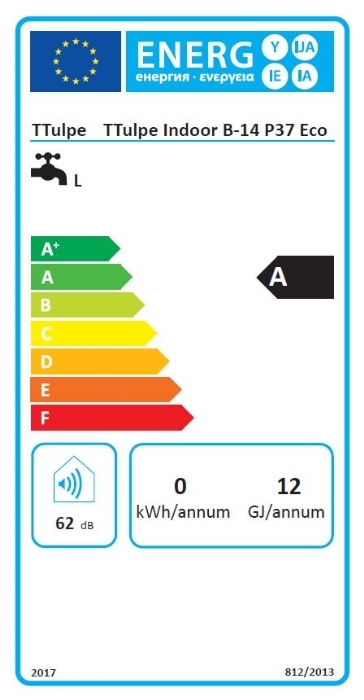

  • Energy Class: A
  • Domestic Hot Water Quantity: L (comparable to CW4)
  • Electric Frost Protection System: No
  • Certifications: KIWA, Gastec

Included in Delivery:

  • Water Heater
  • Manual
  • 1 x 1.5 Volt LR20 battery
  • Filter screen

Warranty:

  • 2 years

The TTulpe® Indoor B-14 Eco offers a powerful and efficient solution for your hot water needs, with a focus on energy savings, safety, and user-friendliness.

Brand: TTulpe
Energy class: Product sheet
£ 350,-
£ 325,- incl. VAT

Stock:
