Description:

The Thermex IF 100 SMART boiler offers advanced features, energy efficiency, and versatile installation options. Here are the specifications and features of this boiler:

Design and Installation

• Installation: Suitable for both vertical and horizontal mounting, providing flexibility for integration in various locations.
• Design: The flat design allows seamless integration in virtually any space.

Energy Efficiency

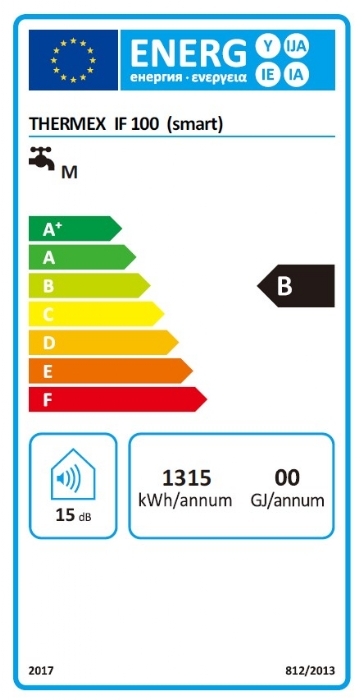

• Energy Label: B, due to excellent insulation and the smart "SMART" mode that maximizes energy savings by maintaining water at a minimum temperature when hot water is not needed.
• SMART Function: Monitors hot water usage and prepares for the next cycle of water usage, providing comfort while saving energy.

Ease of Use and Safety

• Display: Equipped with a user-friendly display with self-diagnosis and frost protection for added convenience and safety.
• Power Loss Safety: Automatically switches to standby mode during power outages and requires manual reactivation after power is restored.

Construction and Materials

• Tanks: Enameled steel tanks with BIO-glasslined coating, providing maximum protection to the inner tank without environmental impact.
• Safety Features: Includes a 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one) for optimal safety.

Technical Specifications

• Brand: Thermex
• Type: IF 100 SMART
• Net Capacity: 84 liters
• Water Pressure: Minimum 0.05 MPa, Maximum 0.7 MPa
• Operating Pressure: Maximum 0.8 MPa
• Power Rating: 2000 Watts, 230 Volts, 10 Amps
• Water Connection: ½“ inch
• Dimensions: 1240 x 511 x 293 mm (height x width x depth)
• Empty Weight: 28.5 kg
• Heating Time at Incoming Temperature of 45 degrees: 2 hours and 12 minutes
• Maximum Temperature: 75 degrees Celsius
• Warranty: 2 years full warranty, 5 years on the tanks

Included in the Package

• Boiler including connection cable
• Manual
• Set of wall anchors
• Inlet combination: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one)

The Thermex IF 100 SMART boiler combines advanced technologies, ease of use, and safety features to provide efficient and reliable hot water supply, suitable for various household applications.
